EP20 solar inverter

Description

One button control; Faster and bigger memory chip; New easy user manual; AC motor and PMSM Motor

  • Product Details
    Place of Origin
    Shenzhen, Guangdong,China (Mainland)
    Brand Name
    ADA
    Model Number
    EP10-2S-XXB ；EP20-4T-XXB
    Output Power
    0.4-450kw
    Output Type
    AC Current；1PH or 3PH
    Size
    Depends on Power
    Weight
    1.8-200KG
    Input Voltage
    450V-800V
    Output Voltage
    0-220V/0-380V
    Type
    DC/AC Inverters
    Output Frequency
    0-600HZ
    Output Current
    0.7A-500A
    Min Input Voltage
    EP10: 250V/       EP20:450V
    Max Input Voltage
    EP10:450V/        EP20:800V
    CECERTIFICAT
    CE   ; ISO9001
    Product Introduction
          ADA EP series is a controller use for AC motor , and being applicable to solar pump system as well. Inverter get input solar DC current to convert into AC current for AC load,Output 1PH AC or 3PH AC.Its input compatigle with both DC & AC .When sunshine intensity change,the output frequency is adjustable in a real time.Solar pump inverter is environmental friendly and economical,we can use solar pumping system to instead of  generater pumping system more conveniently.


    Feature:
    ★ Build-in MPPT function
    ★ High efficiency
    ★ Optimized frequency output
    ★ Start in the morning automatically
    ★ Stop in the afternoon automatically
    ★ Dormancy and wake up automatically
    ★ Output speed change automatically
    ★ New easy user manual
    ★ Faster and bigger memory chip
    ★ GAC motor and PMSM motor

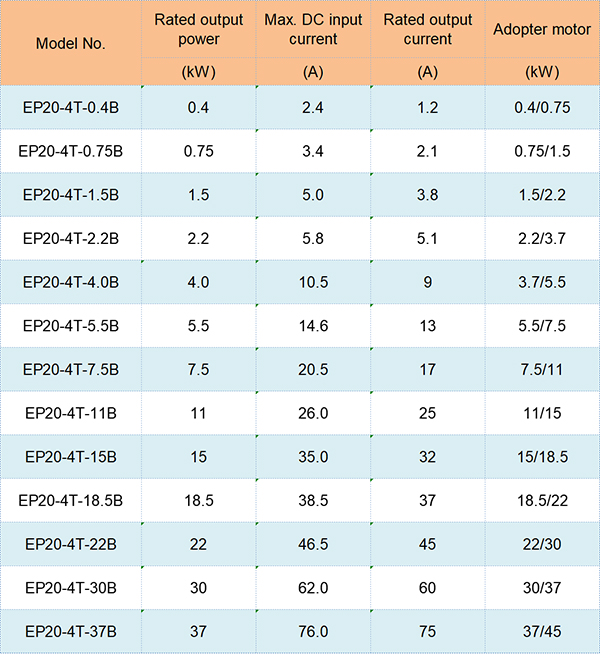

    Product Parameters
    Max input DC voltage
    EP10: 450VDC;EP20: 800VDC
    Recommended MPPT voltage range
    EP10: 150~400VDC;EP20: 350~750VDC
    Recommended input voltage
    EP10: 360VDC; EP20: 540VDC
    Rated output voltage
    1AC 220V & 3AC 220V / 380V
    MPPT efficiency
    99.9%
    Max efficiency of the machine
    97%
    Output frequency range
    0~600Hz
    Protection degree
    IP20
    Altitude
    Below 2000m; above 2000m, derated 1% for every additional 100m
    Standard
    CE    ;  ISO9001
    \
